Dual-line central lubrication system TTV

Dual-line central lubrication system for oil and grease

Accessories two-line central lubrication system:

• pump
• way valve or two 3/2-way valves
• two major pipelines
• dispensers
• lead to the lubricating points
• switching device or a pressure switch on the end of the pipe
• manometer
• safety valve
• electronic control

Advantages of two-lubrication system

• three sizes or nominal delivery rate manifolds
• adjustable piston stroke, or varying the pause time
• monitor critical points limit switch
• opportunity to work automatically
• system operates under a differential pressure of 50 bar
• devices running under high pressure 400 bar, the pressure is not required permanently



Dual-LUBRICATING SYSTEM - DISTRIBUTOR TTZV

-used in dvoupotrubním lubrication system for grease and oil. Despite it is independent of the back pressure maintained dosing lubricant to lubrication points. Max. allowable operating pressure of 400 bar.

Nominal delivery quantity:

• Dual-line distributor - type TTZV 50 ........................... 0.1 to 0.5 cm³ (stroke / outlet)
• Dual-line distributor - type TTZV 100 ......................... 0.3 to 1.5 cm³ (stroke / outlet)
• Dual-line distributor - type TTZV 300 ......................... 0.3 to 3.0 cm³ (stroke / outlet)

Main dimensions

Designation	TTVZ 50/2	TTVZ 50/4	TTVZ 50/6	TTVZ 50/8
	TTVZ 100/2	TTVZ 100/4	TTVZ 100/6	TTVZ 100/8
	TTVZ 300/2	TTVZ 300/4	TTVZ 300/6	TTVZ 300/8
Number of outlets	2	4	6	8
A [mm]	68	93	118	143
Weight [kg]	1,6	2,0	2,8	3,6



Dual-LUBRICATING SYSTEM - DISTRIBUTOR TTSG

-used in dvoupotrubním lubrication system for grease and oil. Despite it is independent of the back pressure maintained dosing lubricant to lubrication points. Max. allowable operating pressure of 400 bar.

Nominal delivery quantity:

• Dual-line distributor - type TTSG ........................... 0 to 2,3 cm³ (stroke / outlet)



Main dimensions

Designation	TTSG - 2	TTSG - 4	TTSG - 6	TTSG - 8
Number of outlets	2	4	6	8
A [mm]	44,5	76	108	140
Weight [kg]	1,6	2,0	2,8	3,6

Specifications:

Min operating pressure: 10 bar
Maximum working pressure: 400 bar
Dosing volume: 0 to 2.3 cm ³
Ambient temperature: -20 ° C to +80 ° C

Dual-LUBRICATING SYSTEM - DISTRIBUTOR VZ 2-10

- robust construction and metering and control piston ensures even under the most extreme conditions in the pressurization system to 500 bar reliable dosage of lubricant.

Nominal delivery quantity:

• 0.4 to 2 cm³ (stroke / outlet)

Main dimensions

Designation	VZ 2	VZ 4	VZ 6	VZ 8	VZ 10
Number of outlets	2	4	6	8	10
L [mm]	48	80	112	144	176
Weight [kg]	1,2	2,1	3,0	3,9	4,8



Dual-LUBRICATING SYSTEM - DISTRIBUTOR ZV-C-15

- maximum operating pressure of 400 bar.

Nominal delivery quantity:

• 15 cm³ (stroke / outlet)

Main dimensions

Designation	ZV-C-2-15	ZV-C-4-15	ZV-C-6-15
Number of outlets	2	4	6
A [mm]	55	92	156
Weight [kg]	2,9	5,1	8,5



Dual-LUBRICATING SYSTEM - DISTRIBUTOR ZV-C-8le

- maximum operating pressure of 400 bar.

Nominal delivery quantity:

• 8 cm³ (stroke / outlet)

Main dimensions

Designation	ZV-C-2-8	ZV-C-4-8	ZV-C-6-8
Number of outlets	2	4	6
A [mm]	55	92	156
Weight [kg]	2,9	5,1	8,5

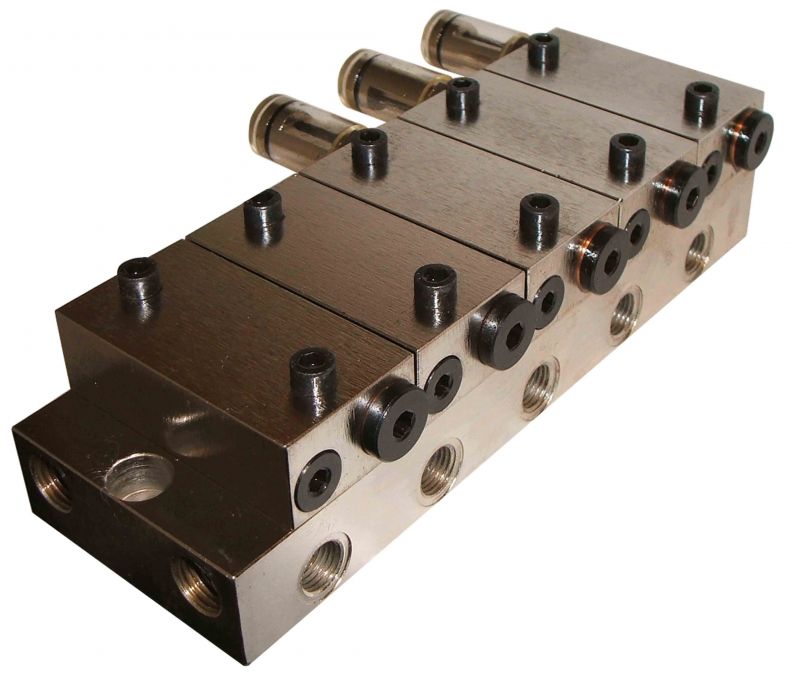

Dual-LUBRICATING SYSTEM - DISTRIBUTOR ZVMT

on the modular principle

- modular manifolds ZVMT consist of a base plate BP bolt-ins manifold VM. Max. allowable operating pressure of 400 bar.

Nominal delivery quantity:

• 0,4 - 2,0 cm³ (stroke / outlet)

Main dimensions

Designation Base plate	Place the module	Number of outlets	[cm] A	[cm] B	Weight [kg]
BP 2	1	2	76	59	0,8
BP 4	2	4	117	100	1,2
BP 6	3	6	158	141	1,8
BP 8	4	8	199	182	2,3
BP 10	5	10	240	223	2,8
